| Tên thương hiệu: | GQZ |
| Số mô hình: | SX011824 |
| MOQ: | 5 cái |
| giá bán: | $69 - $89 |
| Thời gian giao hàng: | 3 ngày làm việc sau khi nhận được khoản thanh toán của bạn |
| Điều khoản thanh toán: | T/t hoặc liên minh phương Tây hoặc paypal |

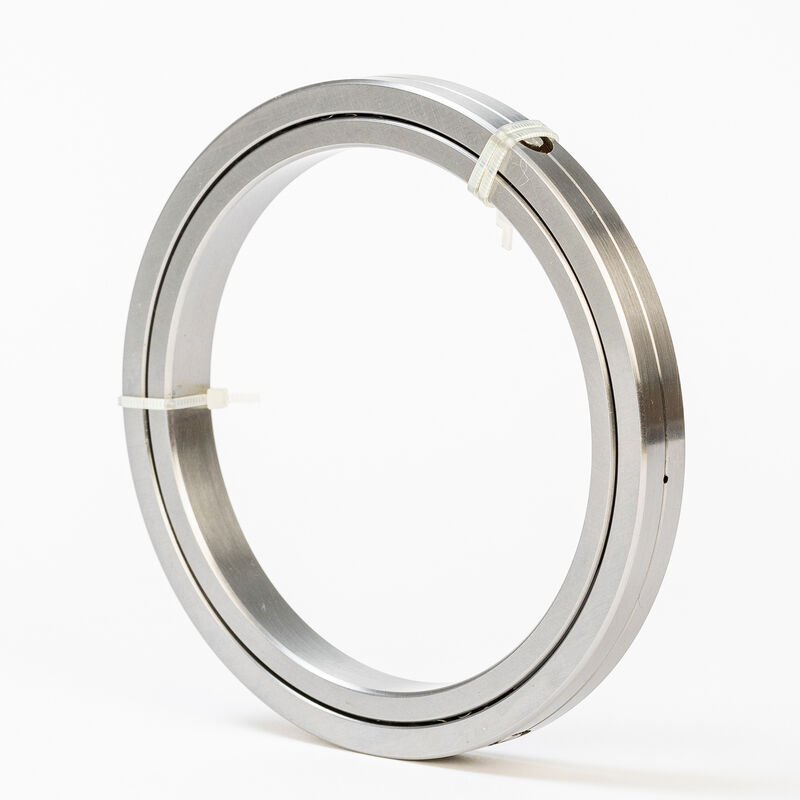

SX011824 120x150x16mm Robot Slewing Bearing | Cylindrical Cross Roller for Industrial Robot Joints
high-performance industrial robots. With a compact 120mm inner diameter, 150mm outer diameter, and 16mm width, it delivers excellent rotational accuracy and smooth operation for robotic joints, automation equipment, and rotary platforms.
Model: SX011824
High load capacity
Smooth rotation with minimal backlash
Ideal for 6-axis industrial robots, collaborative robots, and AGVs
High Precision: CNC manufactured rollers and raceways for minimal rotational error.
Compact Design: Optimized dimensions for tight robot joints and small automation equipment.
Durable Construction: Made of GCR15 Chrome Steel, hardened for long service life.
Smooth Rotation: Cylindrical cross roller design reduces friction and increases stability.
Easy Installation: Standard mounting dimensions, compatible with common robot joints.
Customizable: OEM/ODM available for different sizes, materials, or special applications.
| Parameter | SX011824 |
|---|---|
| Model | SX011824 |
| Inner Diameter (ID) | 120 mm |
| Outer Diameter (OD) | 150 mm |
| Width (H) | 16 mm |
| Type | Cylindrical Cross Roller Slewing Bearing |
| Material | GCR15 Chrome Steel |
| Preload | C0 Standard |
| Max Rotation Speed | 150 RPM (typical) |
| Accuracy Class | P6 / P5 optional |
| Application | Industrial Robots, Collaborative Robots, AGVs, Rotary Platforms |
6-Axis Industrial Robots – Ensures precise joint movement for welding, assembly, or pick-and-place robots.
Collaborative Robots (Cobot) – Smooth rotation for safe human-robot interaction.
AGV & Mobile Robots – Provides reliable turning for automated guided vehicles.
Rotary Tables & Automation Equipment – Stable, high-load rotation for industrial machinery.
Related Models (Thin Crossed Roller Bearing Series)
| Model | d | D | B | Dpw | ds | Dh | Ca | Coa | Cr | Cor | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SX011814 | 70 | 90 | 10 | 80 | 79.5 | 80.5 | 18 | 60 | 12 | 30 | 0.3 |
| SX011818 | 90 | 115 | 13 | 102 | 101.5 | 102.5 | 26 | 96 | 17 | 47 | 0.4 |
| SX011820 | 100 | 125 | 13 | 112 | 111.5 | 112.5 | 28 | 106 | 18 | 52 | 0.5 |
| SX011824 | 120 | 150 | 16 | 135 | 134.4 | 135.6 | 41 | 153 | 26 | 75 | 0.8 |
| SX011828 | 140 | 175 | 18 | 157 | 156.3 | 157.7 | 64 | 237 | 41 | 116 | 1.1 |
| SX011832 | 160 | 200 | 20 | 180 | 179.2 | 180.8 | 69 | 272 | 44 | 133 | 1.7 |
| SX011836 | 180 | 225 | 22 | 202 | 201.2 | 202.8 | 98 | 381 | 63 | 187 | 2.3 |
| SX011840 | 200 | 250 | 24 | 225 | 224.2 | 225.8 | 106 | 425 | 68 | 208 | 3.1 |
| SX011848 | 240 | 300 | 28 | 270 | 269.2 | 270.8 | 149 | 612 | 95 | 300 | 5.3 |
| SX011860 | 300 | 380 | 38 | 340 | 339.2 | 340.8 | 245 | 1027 | 156 | 504 | 12 |
| SX011868 | 340 | 420 | 38 | 380 | 379.2 | 380.8 | 265 | 1148 | 167 | 563 | 13.5 |
| SX011880 | 400 | 500 | 46 | 450 | 449 | 451 | 385 | 1699 | 244 | 833 | 24 |
| SX0118/500 | 500 | 620 | 56 | 560 | 558.8 | 561.2 | 560 | 2538 | 355 | 1244 | 44 |
High Quality: CNC machined and heat-treated for durability.
Fast Delivery: Reliable worldwide shipping.
Technical Support: Assistance for installation and maintenance.
Custom Solutions: OEM/ODM available to fit your requirements.
FAQ
Q1: What is the lead time for SX011824 bearings?
A1: Standard stock bearings can be shipped within 7-10 days. Custom orders usually take 20-30 days.
Q2: Can I get a sample before bulk purchase?
A2: Yes, we provide samples for evaluation. Contact us with your requirements.
Q3: Do you offer OEM or customized sizes?
A3: Absolutely. We can customize dimensions, materials, and preload according to your specifications.
Request a Quote
Upgrade your robot joints with precision slewing bearing SX011824.
Contact us now to get a quote or request a sample!
